Clinometers

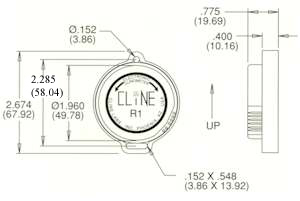

ELECTRONIC CLINOMETER



The Cline Labs, Inc. electronic clinometer is a high performance yet low cost angle measurement sensor.   It combines proven technology with state-of-the-art electronics and the result is reliable operation and low power consumption.  The CMOS electronics convert the sensor's inherently linear resistance changes into easy to interpret analog or ratiometric outputs.  The clinometer is compact, rugged and lightweight and is easy to integrate mechanically.  This highly accurate device, with no moving parts, will give designers new freedom both technically and economically.









General Specifications:

Range:  +/- 60 degrees

Resolution:  .001degree

Linearity:
          0 to 10 degrees is +/- 0.1 degree
          10 to 45 degrees is +/-1% of Angle
          45 to 60 degrees is Monotonic

Null Repeatablity:  .05 degrees
Cross Axis Error:  <1% to 45 degrees


Typical Accuracy:  +/- 0.25% FSO

Temperature:
          Operating is -40 to +85 degrees Celcius
          Storage is -55 to +85 degrees Celcius

Tc of Null:  0.008 arc-degrees per  degree Celcius

Tc of Scale:  0.1% per degree Celcius

Time Constant:  0.3 Sec

Freq Response:  0.5 Hertz



ELECTRICAL SPECIFICATIONS






 RATIOMETRIC (R1)



 ANALOG (A1)



 DIGITAL


Part Number
Pin Assignments:
J1-1
J1-2
J1-3
J1-4



 100010-02*

Vdc Regulated (nom)
Ground
Signal Reference
Signal Output



 100013-01*

+12Vdc (nom)
-12Vdc (nom)
Pwr & Sig Common
Signal Output



 100105-01*

5 Vdc Regulated
Ground
Signal Reference
Radiometric Output


J2-1, J2-2
Condition:

    Shorted



    Open







60 mV/deg, +/-45 degrees linear range**

200mV/deg, +/-10 degrees linear range**







60mV/deg, +/- 45 degrees linear range

200mV/deg, +/-10 degrees linear range





 J2-2:  PWM, TTL Output
           Scale:  100us/deg
           Null:  7.5ms(50%)
           Freq:  66.6 HZ

J2-1:  PWM, TTL Ref




Supply Voltage


Supply Current



 5 to 16 Vdc regulated


3 milliamps



 +/-8Vdc to +/- 20 Vdc


3 milliamps



 5 Vdc regulated


3 milliamps



                 *Optional mounting and output variations are available on request.
                **Specified at 10 Vdc Supply Voltage
